What is Raduino?

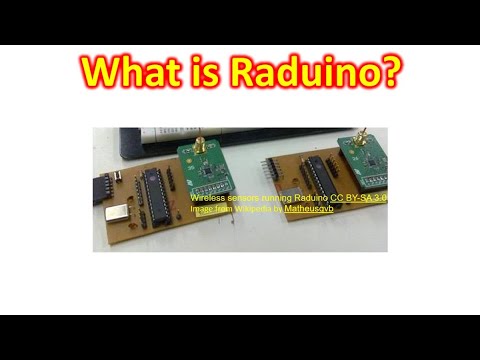

 Many of you would have heard of Arduino, the popular microcontroller, especially those interested in hobby projects and those who are using the Arduino based µBITX QRP transceiver. Some of you would also have used Raduino in your µBITX QRP transceivers. Raduino is a free platform for creating wireless sensor networks, including hardware, firmware and software based on the Arduino platform. This may allow even people without much programming experience to build their own sensor network. Raduino project originated in Brazil in 2010 and is an extension of the Arduino project which started in 2005. Hardware part is an Arduino integrated with a CC1101 transceiver and controlled by an ATMEGA328 microcontroller.


CC1101 is a low cost sub 1GHz transceiver for very low power wireless applications. Versions for 433 MHz and 868 MHz could be seen as available online in this region. ATMEGA328 is a microcontroller commonly implemented in the Arduino platform. Raduino circuit board supplied with µBITX has an arduino soldered to the Raduino board, control lines for the display unit, si5251a PLL chip and a 16 pin connector to the µBITX main board.
